Replacing the battery

Applies to:

To replace the battery, follow these steps:

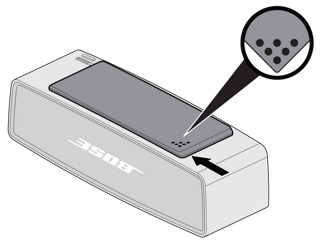

Gently place the speaker so the button panel rests against a flat, non-marring surface. Locate the pull indicator imprinted on the outside corner of the rubber foot

With your finger and thumb on the pull indicator, gently pull the rubber foot up and away from the speaker. The foot should remain attached to the speaker only by its rubber tab, which is inserted into the speaker

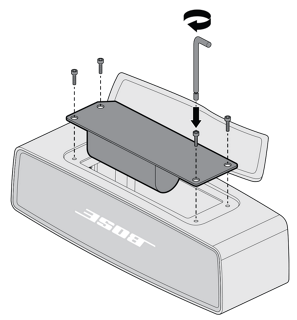

Using the supplied wrench, remove the four battery screws by turning the wrench anti-clockwise

Pull the battery out of the speaker

Install the new battery

i. Align the battery screw holes with the ones on the speaker

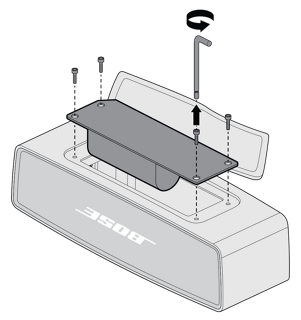

ii. Using the wrench, turn the battery screws clockwise until they are securely tightened

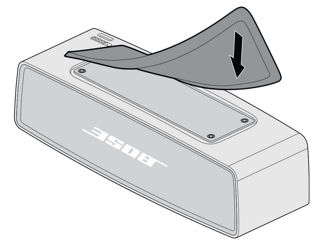

Align the rubber strips inside the foot with the grooves on the speaker and press the foot firmly into the speaker

Place the speaker on the charging cradle. Charge the battery for three hours or until the battery status indicator is solid green. You can use the speaker while the battery charges
